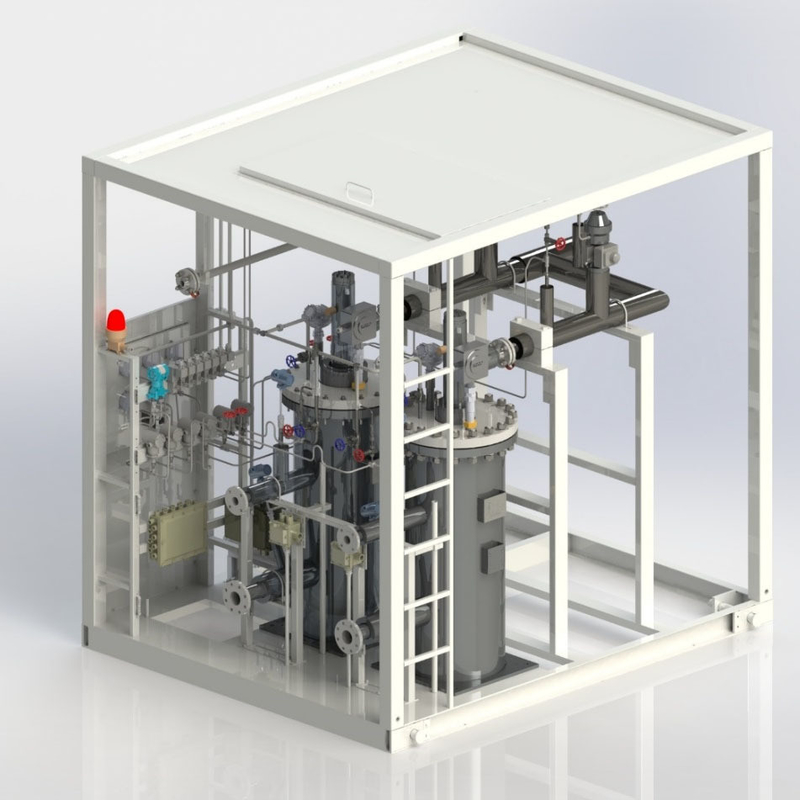

LNG Shore-Based Refueling Skid

Πληροφορίες λεπτομέρειας

Περιγραφή προϊόντων

Πληροφορίες λεπτομέρειας

Περιγραφή προϊόντων

It integrates the functions of filling and pre-cooling, and can realize the bunkering function with the PLC control cabinet, power drag cabinet and liquid filling control cabinet, the maximum filling volume can reach 54 m³/h. At the same time, according to customer needs, the LNG trailer unloading, storage tank pressurization and other functions can be added.

Product features
Specifications
Ask now

Product features

Highly integrated design, small footprint, less on-site installation workload, and fast commissioning.

Shore-Based Filling Skid

● Skid-mounted design, easy to transport and transfer, with good mobility.
● Can be adapted to different types of tanks, with strong versatility.
● Large filling flow and fast filling speed.

● All electrical instruments and explosion-proof boxes in the skid are grounded in accordance with the requirements of the national standard, and the electrical control cabinet is independently installed in a safe area, reducing the use of explosion-proof electrical components and making the system safer.
● Integrated with PLC automatic control system, HMI interface and convenient operation.
● Can be customized according to user needs.

Specifications

Product number	HPQF series	Design Tempreture	-196～55 ℃
Product Size (L×W×H)	3000×2438×2900 (mm)	Total Power	≤70KW
Product Weight	3500kg	Electric System	AC380V, AC220V, DC24V
Fill Amount	≤54m³/h	Noise	≤55dB
Applicable Media	LNG/liquid nitrogen	Trouble Free Working Time	³5000h
Design Pressure	1.6MPa	Measurement Error	≤1.0%
Work Pressure	≤1.2MPa	--	--

Application

This product is used as the filling module of the shore-based LNG Bunkering station and is only used for the shore-based filling system.

mission

Efficient use of energy to improve the human environment
